Product Overview

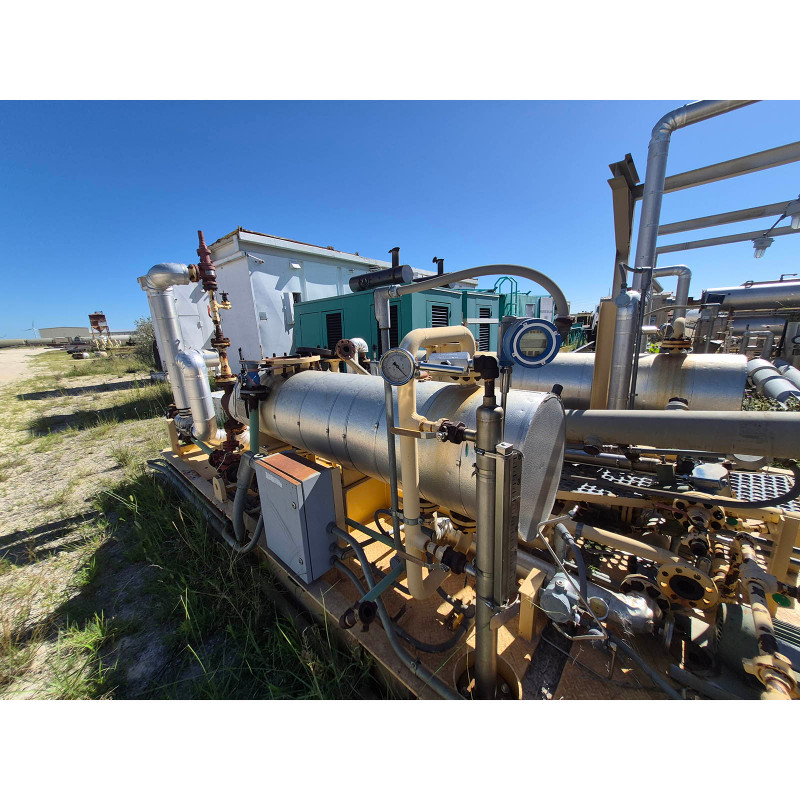

Available for sale is a skid-mounted hot oil heat exchanger process module removed from a professionally engineered modular condensate stabilization and natural gas liquids (NGL) recovery facility in Heurfano Mountain New Mexico. The package features dual Doyle & Roth shell-and-tube heat exchangers mounted on a common structural skid with associated circulation equipment, insulated process piping, electric motor-driven pumps, valves, two heat exchanger columns (not pictured) and instrumentation as pictured along with the Chart Cooling condenser and a small vessel that is also on this process module.
Originally designed for continuous industrial service, this skid-mounted process module offers an excellent opportunity for inspection, refurbishment, repurposing, or integration into oil & gas, petrochemical, or other industrial process applications.

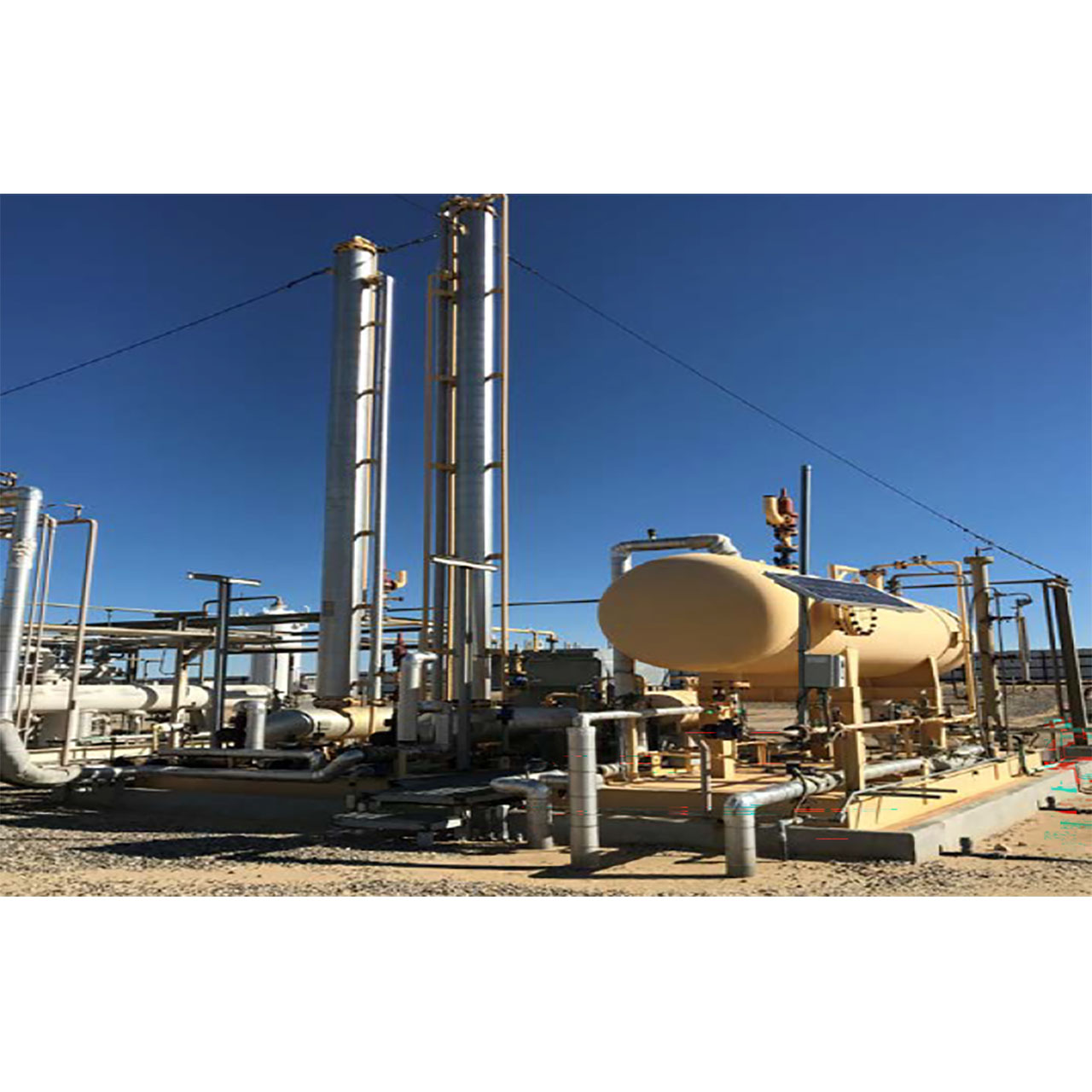

This was removed from a modular natural gas processing facility that was shut down due to declining field production and changing market conditions. The plant remained operational at the time it was taken out of service. The equipment has since been stored at our facility in its current as-removed condition and is available for inspection.
Manufacturer
- Doyle & Roth Mfg. Co., Inc.
Equipment Includes
- Dual shell-and-tube heat exchangers
- Electric motor-driven circulation pumps
- NGL Product surge tank 225 PSI 30" ID x 6' S/S Nat'l Brd #19871 Serial 42687
- Structural skid assembly
- Process piping
- Isolation valves
- Instrumentation
- Insulated piping and associated process connections
- Chart Cooler Service company Model H-60 cooler
Heat Exchanger Specifications (Equipment Tag E101)
- Manufacturer: Doyle & Roth Mfg. Co., Inc.
- Equipment Tag: E101
- Manufacturer Serial Number: S1787-1
- National Board Number: 20519
- Year Built: 2007
Design Ratings
| Component | MAWP | Design Temperature | Minimum Design Metal Temperature (MDMT) |
|---|---|---|---|
| Shell Side | 240 PSI | 250°F | -20°F @ 240 PSI |
| Tube Side | 150 PSI | 450°F | -20°F @ 150 PSI |
The module includes a second Doyle & Roth shell-and-tube heat exchanger with consecutive serial numbering, indicating the exchangers were manufactured as a matched pair for this project.
Available Manufacturer Documentation
Available documentation varies by equipment. Some items may include available OEM manufacturer manuals, valve documentation, regulator literature, instrumentation manuals, or other manufacturer-supplied documentation where available.
Unless specifically stated in this listing, no PLC hardware, PLC software, HMI software, proprietary engineering documentation, process drawings, P&IDs, control programs, or other intellectual property are included with the sale of this equipment.
Additional Services Available
Hess Services can provide a variety of value-added services to prepare equipment for its next application, including:
- Equipment inspection
- Loading assistance
- Transportation coordination
- Equipment refurbishment
- Industrial painting and coating
- Non-Destructive Examination (NDE)
- Hydrostatic testing (where applicable)
Contact Hess Services for pricing, additional photographs, available manufacturer documentation (where applicable), or to discuss inspection, refurbishment, testing, transportation, or your specific application requirements.
