Product Overview
New in box, never used, but out of warranty, sold as is, no returns.
Ships in original Kimray box/packaging.

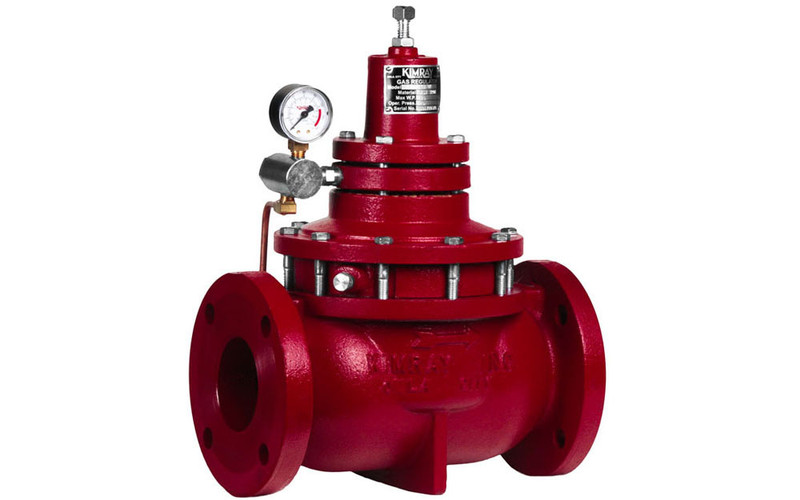

The Kimray Back Pressure Regulator AAE is a high-quality and reliable back pressure regulator designed for efficient control of pressure in various industrial applications. Utilizes process gas to operate integrated pilot. Gas must be clean and dry.
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 3 " |
| Connection Type: | 150 RF |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available for NACE MR0175 compliance or certification |
| Trim Size: | 3 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Gas |
| Pilot Type: | Vent |
| Max Working Pressure: | 175 psig |
| Min Set Point Pressure: | 5 psig |
| Max Set Point Pressure: | 125 psig |
| Operation: | Pneumatic |
| Face-to-Face Length: | 12.188 " |
| Max Cv: | 117 |
| Cf: | 0.75 |
| Weight: | 88 lbs |
