Product Overview
New in box, old stock, out of warranty, sold as is.
Ships in original Kimray box/packaging.

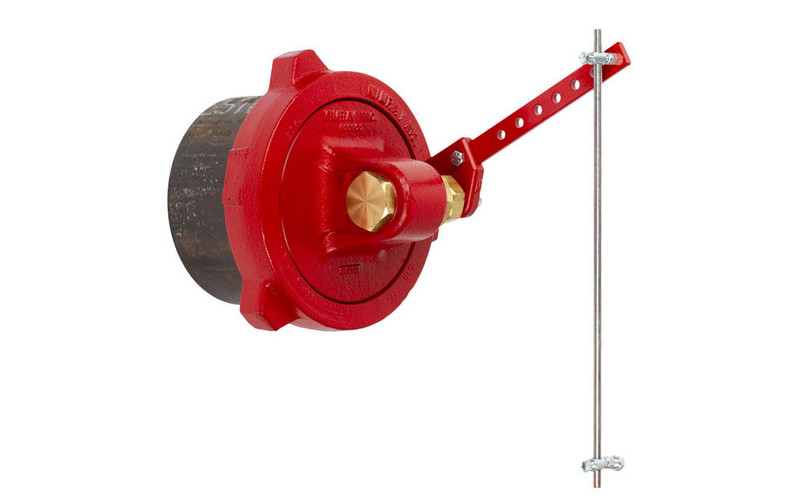

Trunnion assemblies connect to the vessel and sense the liquid level, moving a lever up and down, linking to and operating a lever operated dump valve. A float and float arm must also be ordered separately to complete the trunnion assembly.
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 8 " |
| Connection Type: | Hammer Union |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available for NACE MR0175 compliance or certification |
| Max Working Pressure: | 500 psig |
| Operation: | Mechanical |
| Catalog Page: | 03:50.1 |
| Material Test Report: | Included |
| Additional Info: | 11" Lever Bar |
| Additional Info: | 5" long Weldneck included |
| Additional Info: | Includes Hammer Union Nut |
| Weight: | 62 lbs |
