Product Overview

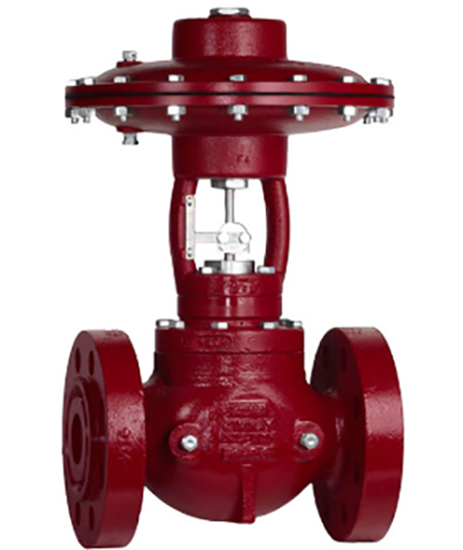

Kimray's Cage-Guided High Pressure Control Valve is a balanced valve that can be used as a dump valve, pressure regulator, suction controller, recirculation valve, as well as in plunger lift applications.
New in Crate, never used, but OUT OF WARRANTY, sold as is, no returns.
This is a new valve, just old stock.
The Cage-Guided Control Valve has larger trim sizes (available in 2" thru 10" end connections) for larger valve coefficients (Cv) compared to the Stem-Guided series.
It can be fitted with optional electric actuation or operated with compressed air for zero-emission requirements.
Note: Connection type is 1500 RTJ
Tech Specs
| Type | Value |
| Connection Size: | 2 " |
| Connection Type: | 1500 RTJ |
| Body Style: | Through Body |
| Body Material: | Steel |
| NACE MR0175: | Option Available |
| Trim Size: | 2 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 3705 psig |
| Actuator Spring Nominal Pressure: | 30 psig |
| Actuator Crack Open Pressure: | 6 psig |
| Actuator Full Open Pressure: | 30 psig |
| Max Supply Gas Pressure: | 45 psig |
| Fail Position: | Closed - Field Reversible |
| Operation: | Pneumatic |
| Catalog Page: | 01:20.1 |
| Face-to-Face Length: | 13.5 " |
| Min Cv: | 4 |
| Max Cv: | 57 |
| Cf: | 0.76 |
